Word Field Shading

Available on Smokeball Grow and Prosper+

Word Field Shading is a helpful setting for you to see what fields are being automated from Smokeball.

How do I turn on/off field shading in Word?

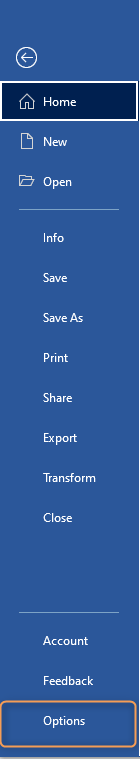

  • To enable or disable the field shading option in Word, you will need to Open Word, go to File > Options.

Navigate to Advanced and use the Field shading drop-down menu to toggle Field shading on or off.

  •  Field Shading will show you what is automated in documents.

Alternative method to show or hide field shading

If the steps above don't resolve your issue, try adding the Form Field Shading option to your Word toolbar:

  1. Open Microsoft Word (either from a Smokeball document or outside of Smokeball) and navigate to File > Options.

  2. Select Quick Access Toolbar, then under the Choose commands from drop-down menu, choose All Commands.

  3. Find Legacy Tools from the grey list on the left (it's in alphabetical order), then click on it. Click Add>> on the middle of the window.

  4. Click OK to save your changes.
  5. When you wish to show or hide field shading in Word, click on the Briefcase with Tool icon on the Quick Access Toolbar at the top left-hand side of Word, then click on the Form Field Shading icon.
